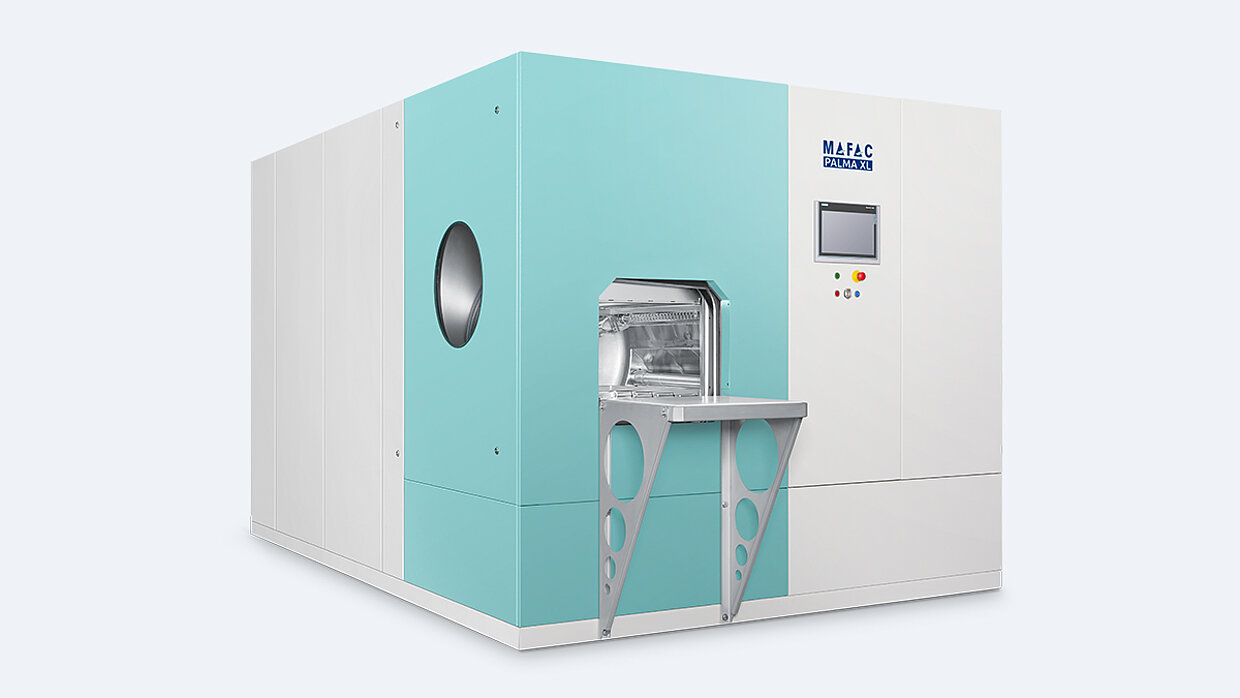

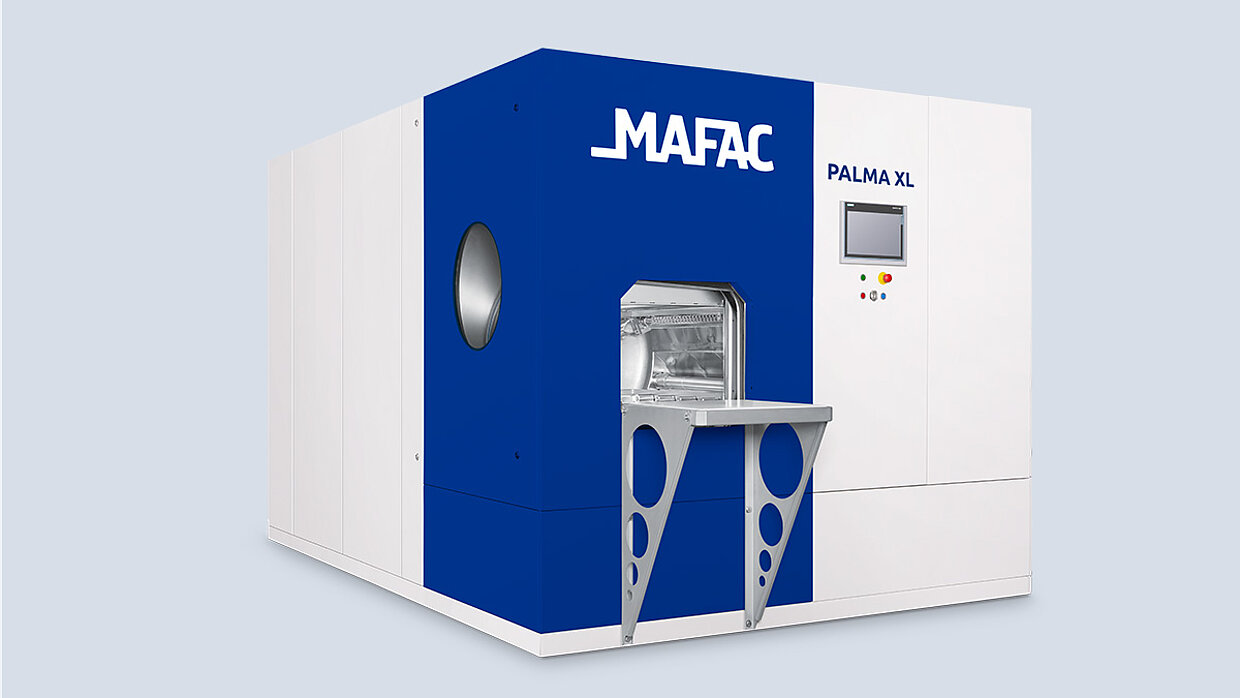

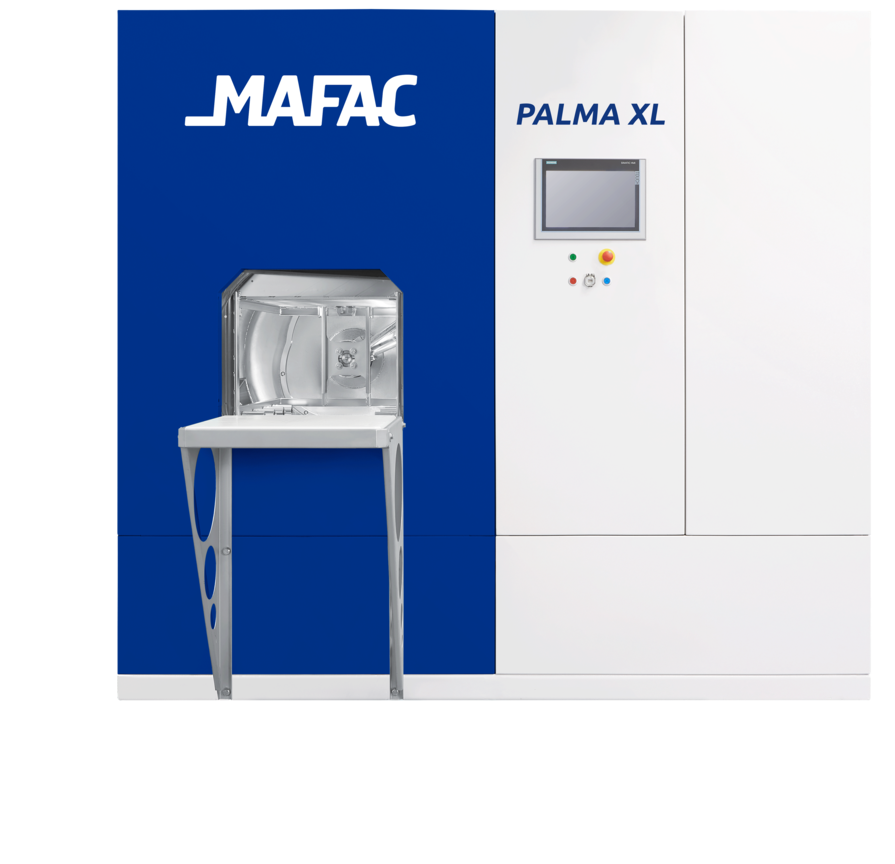

MAFAC PALMA XL: The high-capacity Cleaning System
The MAFAC PALMA XL sets new standards in the cleaning of large and heavy components. With an enlarged basket size and high load capacity, it is particularly suited for industrial applications with a constant flow of parts. The system combines high throughput with convincing cleaning quality and process reliability – ideal for anyone who expects top-level cleanliness even in XL dimensions.
Technical Highlights

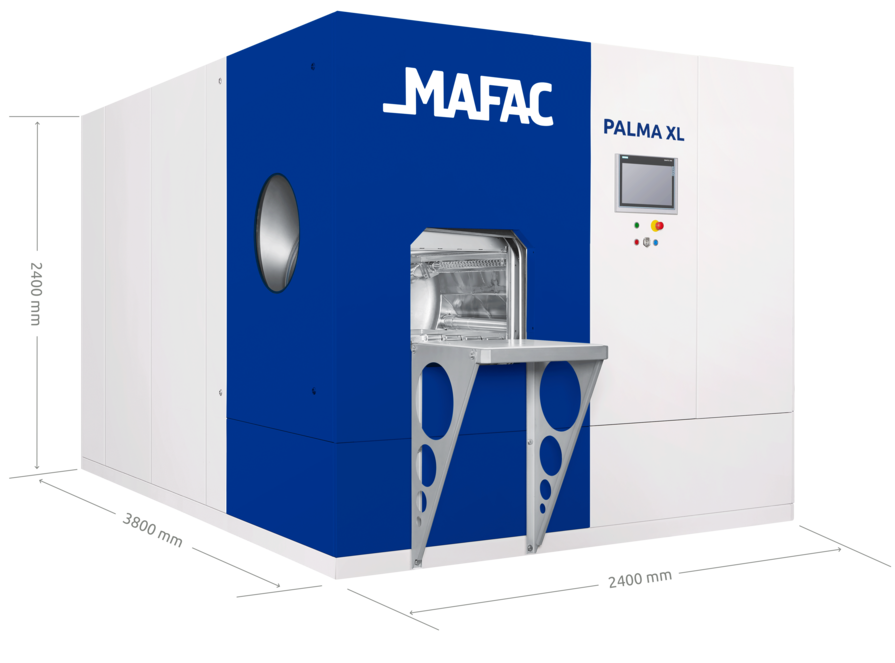

| • Compact dimensions: 2400 L x 3800 W x 2400 H mm |
| • XL basket size: 800 L × 600 W × 400 H mm for large-volume components |
| • Process basis: Spray-flood cleaning concept with three-bath configuration as the basis for high cleanliness |
| • Batches: load capacity up to 250 kg for heavy workpieces |
| • Upgrade option: High-purity modules such as ultrasonics at 25 and/or 40 kHz, ultrapure water rinsing, and ultrafine filtration |
| • Efficient cleaning and targeted drying (hot air, pulse-blowing, vacuum drying, infrared) even with high part volumes |
Applications
| • Automotive: Cleaning of cylinder heads, transmission housings, engine blocks, and structural components |
| • Mechanical engineering: Cleaning of heavy functional units, housings, and large-format assemblies |
| • Medical technology: Cleaning of large-volume instruments, housings of medical devices, and technical assemblies |
| • Optics: Cleaning of large-format optical mounts, carriers, precision components, and system assemblies |
| • Semiconductor industry: Cleaning of housings, carriers, and large-format precision-manufactured components |
| • Metal processing: Cleaning of large-volume milled, turned, stamped, and cast components |
| • Plastics processing: Cleaning of large-format molded parts, housing components, and technical plastic parts |
| • Food industry: Cleaning of production and processing components, filling and dosing systems |
| • Additive manufacturing / 3D printing: Cleaning of large-format and serial parts, removing manufacturing residues |
For larger components or higher throughput
For larger components or higher throughput
Designed for heavy single parts or total batch loads – heavy-duty work with precision
Designed for heavy single parts or total batch loads – heavy-duty work with precision
Combines generous loading capability with superior cleaning results
Combines generous loading capability with superior cleaning results
Four transducers for excellent cleaning – ideal for persistent contamination and complex geometries
Four transducers for excellent cleaning – ideal for persistent contamination and complex geometries
Flexibility and performance for large components in high volumes
All the proven strengths of the MAFAC PALMA, enhanced by greater flexibility and performance: the XL version efficiently cleans hhigh batch volumes as well as large and heavy components in a highly reliable process. The basket system is designed to allow the combination of standardized containers. Loading and unloading can be performed manually via a roller conveyor or fully automated.
The MAFAC PALMA XL can be be equipped with the following application-oriented technologies: MAFAC Vectorkinematics und MAFAC VAP (Pressure Change Technology).
Special features of the MAFAC PALMA XL
| • XL dimensions for particularly large and heavy components |
| • High throughput even with solid workpieces |
| • Universally applicable across a wide range of industries |
| • High load capacity of up to 250 kg per batch, optionally up to 500 kg |
| • Future-proof concept with flexible configuration options |
MAFAC PALMA XL FAQs
How does the MAFAC PALMA XL differ from the MAFAC PALMA?
The MAFAC PALMA XL is based on the extensively proven MAFAC PALMA concept, but is designed for significantly larger and heavier components.
What specific advantages does the MAFAC PALMA XL offer compared to the MAFAC PALMA?
With the XL version, large-volume and heavy components can be cleaned and dried in series – without compromising throughput, quality, or process reliability.
Is the MAFAC PALMA XL suitable, for example, for large engine and transmission components?
Yes. With its enlarged basket size and high load capacity of up to 500 kg (optional), the MAFAC PALMA XL is ideally suited for large and heavy components from the automotive and commercial vehicle industries.
Can the XL version also cover high-purity applications?
Yes. The MAFAC PALMA XL meets the highest cleanliness standards and is therefore also suitable for high production volumes or large components in sensitive industries such as medical technology, semiconductors, and the laser industry.
